AUTOMATION & CIVIL ENGINEERING EQUIPMENT
Product Details
| Product Name : | COMPRESSING TESTING MACHINE |
|---|---|
| Model No. : | DP3022CT |
Product Specification
| Maximum Load | 1500 KN (150t) |
| Display value accuracy | Level 1 |
| Minimum resolution | 0.1 KN |
| Maximum distance between bearing plates | 320mm |
| Upper and lower pressure plate specifications | 220*250mm |
| Piston diameter x maximum stroke | 250mm* 50mm |
| Motor power | 0.75KW |
| Input voltage | 380V (can do voltage 220V ) |

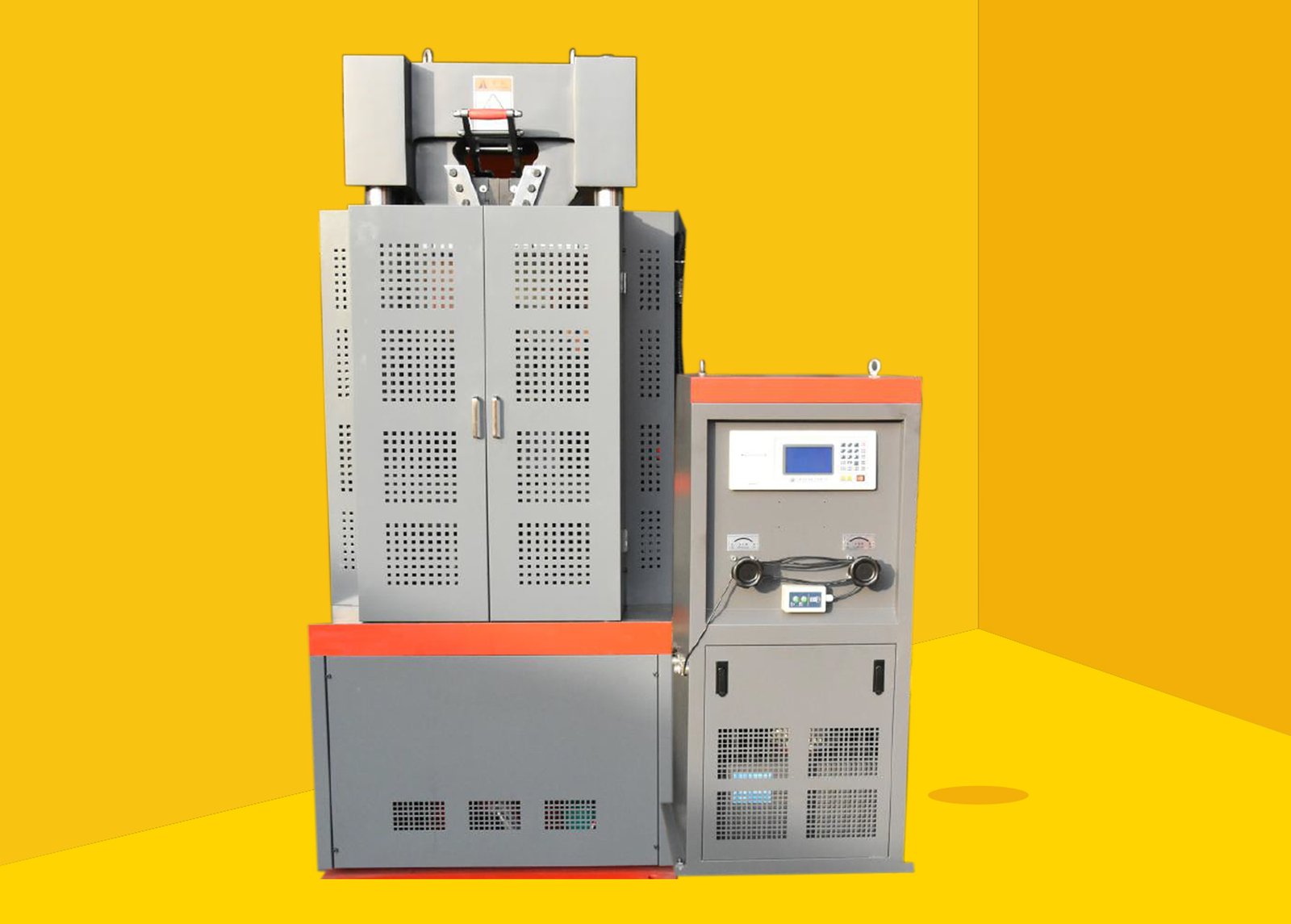

| Product Name : | UNIVERSAL MATERIAL TESTING MACHINE |
|---|---|
| Model No. : | DP022UMT |
Product Specification
| Maximum Load | 200KN (20t) |
| High precision sensor accuracy | +_ 0.05% |
| Total motor power | 1200W |
| Power supply | ACC220V 50Hz |
| Maximum distance between drawing collet (counting piston stroke) | 600 |
| The effective distance between the two screws | 430 mm |
| Flat sample holding thickness | 0-15 mm |
| The maximum clamping width of flat sample | 58 mm |
| Round sample holding diameter | 10- 32 mm |
| Maximum distance between upper and lower platens | 550 mm |
| Upper and Lower pressing plat size | 150*150 mm |
| Maximum bending test height | 100 mm |
| Working piston diameter *stroke | 120*200 mm |
| Net weight of host | 1550 kg |
| Main machine size | 850*580*2150 |
UNIVERSAL MATERIAL TESTING MACHINE

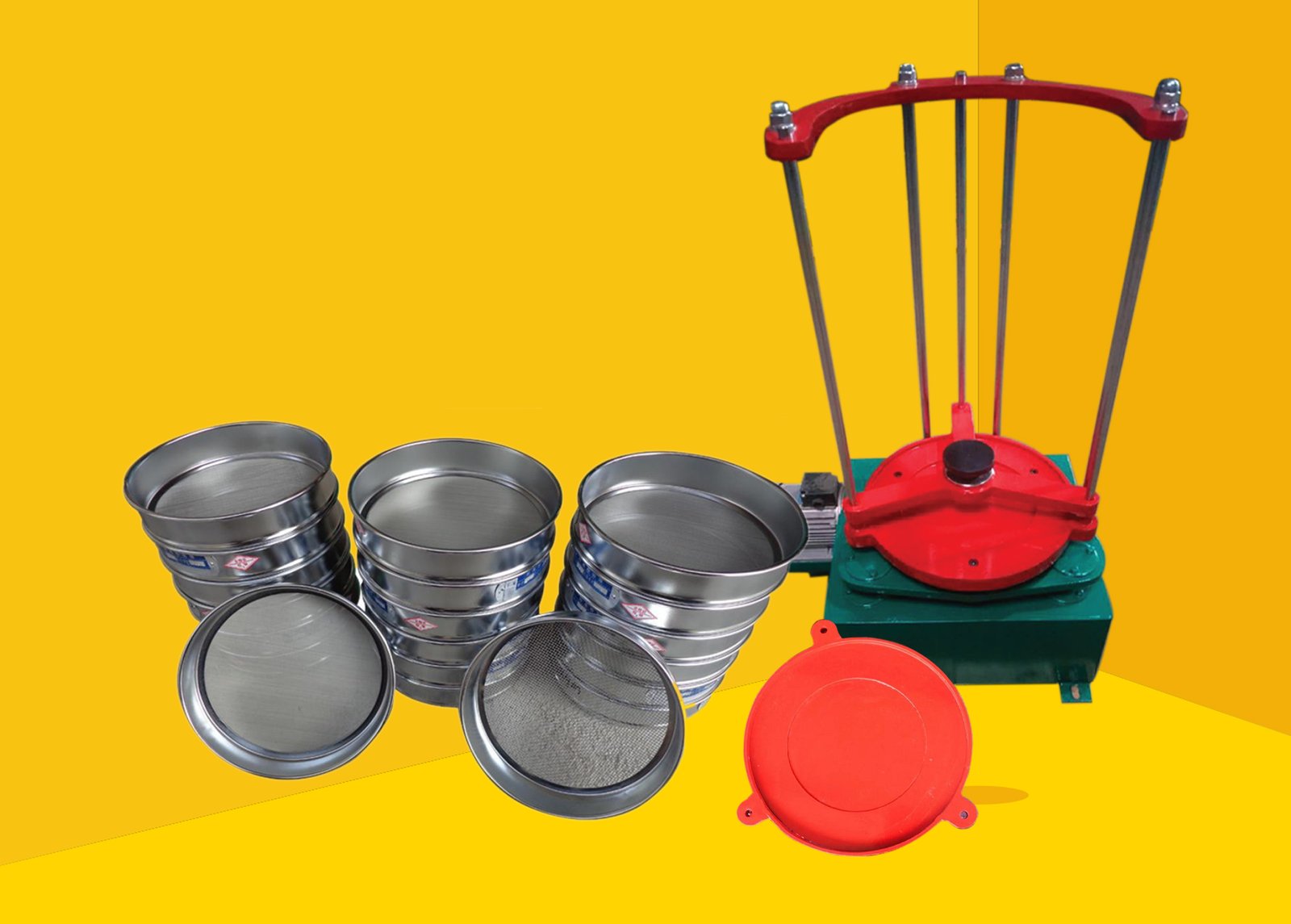

| Product Name : | IMPACT TYPE VIBRATING SCREEN MACHINE |
|---|---|
| Model No. : | DP9022S |
Product Specification
| Motor Power | 370W |
| Electric Voltage | 380V (Can do voltage 220V) |
| Sieve Diameter | 300 mm |
| Breadth | 6 mm |
| Number of Jars | 147/ pcs /min |
| Shake the number | 221 pcs /min |
| Radius the number | 12.5 mm |
| The screen is 300 mm in diameter Sieve stack height | 440mm |
| Swing stroke | 25 mm 221 times/min |
| Oscillating about Transfer speed | 1400 RPM |

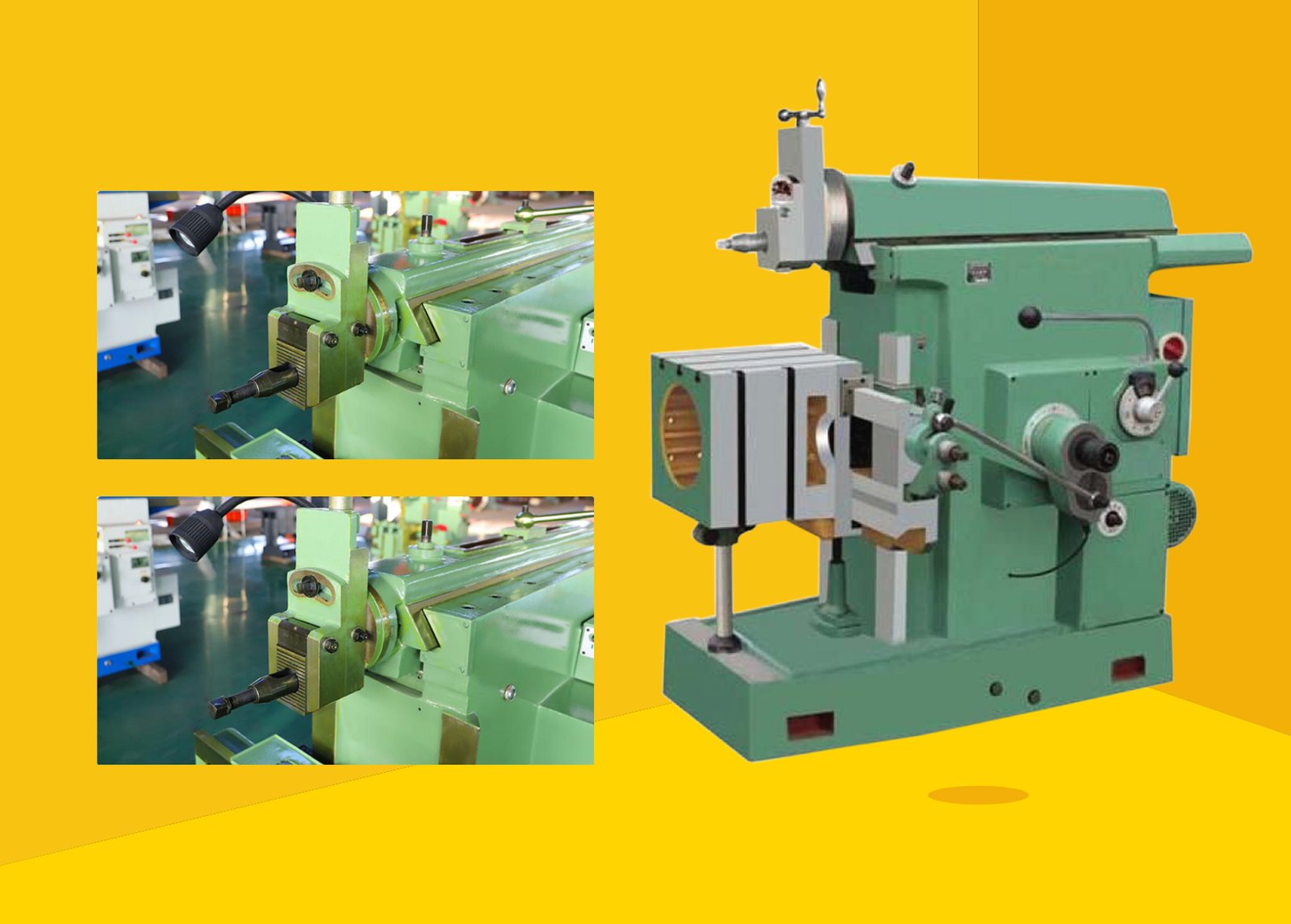

| Product Name : | SHAPER MACHINE |
|---|---|
| Model No. : | DP7022SM |
Product Specification
| Power | 3KW |
| Weight | 2200 KG |
| Function | Shaper Facing |
| Voltage | 380V |
| Main technical parameters | EBC635A Shaper |
| Maximum planning length | 350 mm |
| Maximum distance from pillow bottom to work table | 330 mm |
| Maximim movement distance of worktable (horizontal) | 400 mm |
| Motor | 1.5 KW 1400 r/min |
